Aftermarket crusher wear parts & liners range.
Engineered, cast, machined, and shipped from one foundry.
Fixed and swing jaws, cone liners, mantles & concaves, HSI blow bars, vertical roller mill castings, cement mill liners, roller press parts and heat-resistant castings.
PRODUCTS
Aftermarket crusher wear parts & liners range.
Fixed and swing jaws, cone liners, mantles & concaves, HSI blow bars, vertical roller mill castings, cement mill liners, roller press parts and heat-resistant castings.

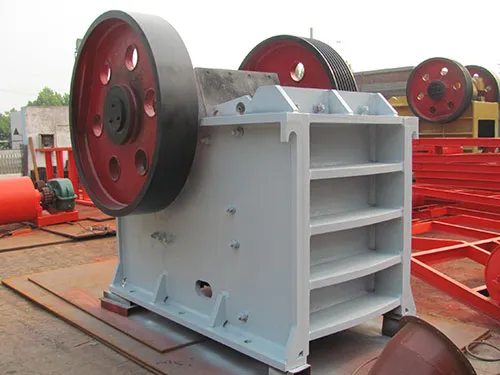

Jaw Crusher Parts
5 typesMn13 / Mn18Cr2 austenitic manganese steel jaw plates. Work-hardens under impact — the harder you crush, the harder it gets.

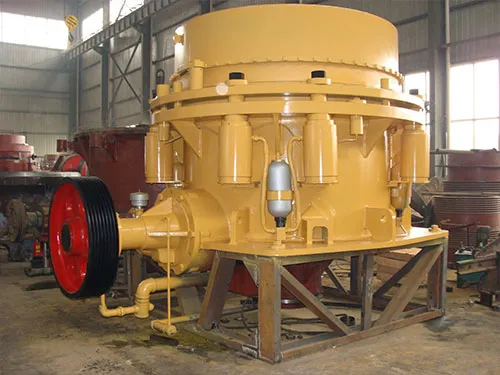

Cone Crusher Spare Parts
7 typesMantle, concave, bowl liner for Metso HP/GP, Sandvik CH/CS, Symons, Terex Trio. All cavities from EF to EC available.

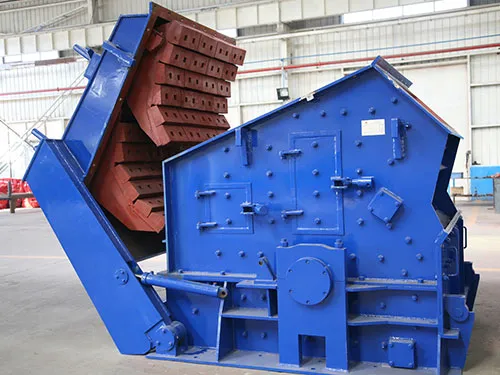

Impact Crusher Spare Parts
6 typesHigh-chrome Cr26 / Cr27 blow bars, impact plates, liners for Sandvik, Metso, Hazemag, Kleemann, Rubblemaster impactors.

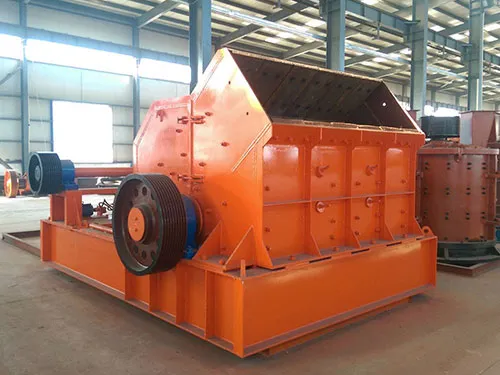

Hammer Mill / Hammer Crusher Spare Parts
6 typesHigh-manganese hammers, grate bars, hammer pins for cement clinker, coal, and limestone grinding lines.

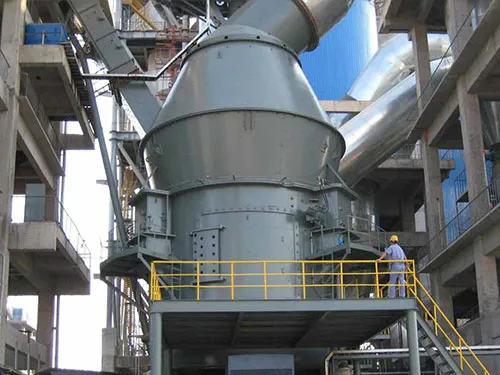

Vertical Roller Mill (VRM) Wear Parts
7 typesVertical roller mill castings for cement and mining VRMs: grinding roller tyres, table liners, separator blades, guide vanes and nozzle rings.

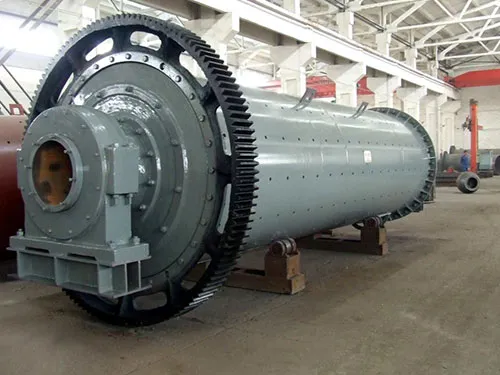

Cement Mill Liners / Ball Mill Parts
6 typesCement mill liners, tube mill liners, diaphragm plates, trunnion liners and grinding media for ball mills in cement, mining and mineral processing.

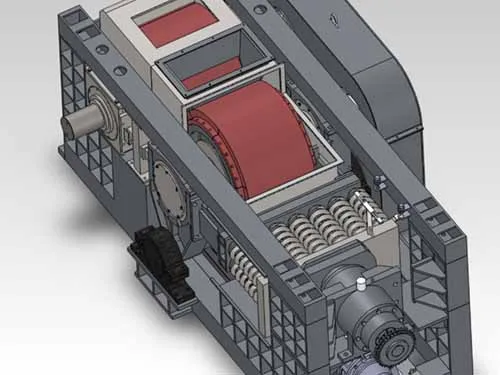

Roller Press Spare Parts
4 typesPress roller surfaces, roller tires, and bearing assemblies for high-pressure grinding rolls (HPGR) in cement pre-grinding and slag grinding.

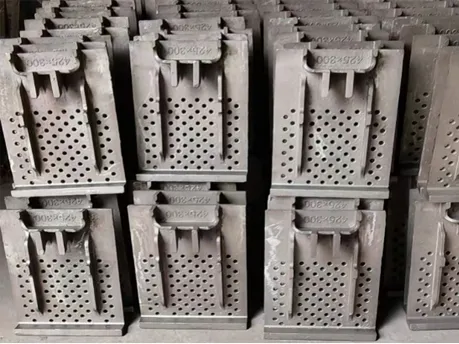

Heat Resisting / Heat-Resistant Castings
8+ typesHeat resisting and heat-resistant castings for cement kilns, clinker coolers, preheaters and clinker handling systems.
Vibrating Screen Mesh & Screen Panels
1 typesWoven wire screen mesh and polyurethane screen media for aggregate, quarry, recycling and mineral processing plants.
Rubber Conveyor Belts & Idlers
2 typesRubber conveyor belting, carrying idlers and return rollers for quarry, cement, mining and bulk material handling lines.
Find wear parts by equipment model, OEM reference or drawing
Procurement teams usually search by exact part family and machine model: fixed and swing jaws for Metso C Series, cone mantles and concaves for Sandvik CH crushers, HSI blow bars for Hazemag and Kleemann impactors, vertical roller mill castings for ATOX / Loesche / MPS mills, cement mill liners for tube mills, roller press studded rolls and clinker cooler grate plates. Send a part number, drawing, worn sample photos or operating position and we will match material grade, dimensions and compatible patterns.
Product resources
Download our catalogue, sample test reports and technical documentation.
Trusted by global industry leaders
Real-world performance data from cement, mining, and steel customers.
Vertical Mill Roller Tires
Mn18Cr2 grinding rollers for Atox 50 raw mill. 24 rollers delivered in 2023.
2,600 hrs — 18% longer than OEMBall Mill Liners
High-chrome (Cr26) liners for cement mill Ø4.6×13m. Full set delivery.
2,200 hrs — 25% longer than OEMJaw Crusher Plates
Mn22Cr2+TiC jaw plates for primary crusher. Extreme-impact sinter feed.
900 hrs — 50% longer than OEMEngineered Materials for Maximum Wear Life
Six alloy families. Each tailored to your rock type and crushing stage — not just the cheapest grade.
Manganese Steel Mn13Cr2
Standard Hadfield-grade austenitic manganese steel with high carbon content for rapid work-hardening. The industry workhorse for moderate-impact abrasive applications.
High Manganese Mn18Cr2
Higher manganese content for deeper work-hardening. Ideal when feed material is both hard and abrasive with moderate to high impact.
Ultra-High Manganese Mn22Cr2
Maximum manganese for extreme impact conditions. Deepest work-hardening layer. Survives where other grades crack or spall.
High Chromium Cast Iron Cr26 / Ni-Hard
26% chromium martensitic white iron, comparable to Ni-Hard 4 and Cr15Mo3 grades. Carbide-rich microstructure for exceptional abrasion resistance in low-to-medium impact applications. Can be heat treated for optimized hardness.
Titanium Carbide Inlay
Titanium carbide inserts cast into an austenitic manganese steel matrix on working faces. TIC rods provide extreme hardness (2,500+ HV) where it counts, while the matrix absorbs impact. Superior to tungsten carbide overlay in casting-bonded applications.
Ceramic Matrix Composite
Martensitic steel or high chrome matrix with ceramic inserts in the high-wear zone. 2-3× life vs. standard blow bars in secondary impact crushing.
Full Material Selection Guide
Compare 6 alloy families, standards, and wear-life data.
Wear Solutions for Your Industry
Custom material selection and engineering support for any crushing application
Don't see your part?
Every casting starts with your drawing. If the machine exists, we can make the part — regardless of brand, model, or age.
Send Your Drawing
