Wear and spare parts
Grinding Mill Parts for international equipment, matched by model, drawing or verified dimensions with order-specific material and inspection routes.
Category content reviewed by ZL Crusher Parts Engineering Team · · Company evidence boundaries
Grinding Mill Parts
This page is the technical and commercial entry point for “Grinding Mill Parts”. It covers four distinct buyer tasks without treating a model name as a fitment guarantee.
Start with the part family that contacts the material or defines the working chamber. Final fitment and material selection follow the actual machine and duty.
Core product familyMill liner system covering shell liners, end liners, lifter bars and grate plates for the verified mill arrangement.
Candidate material routes
Identification starting point: Mill type, shell or end position, row, drawing, liner profile, bolt pattern, lifter arrangement, grate layout and adjacent components.

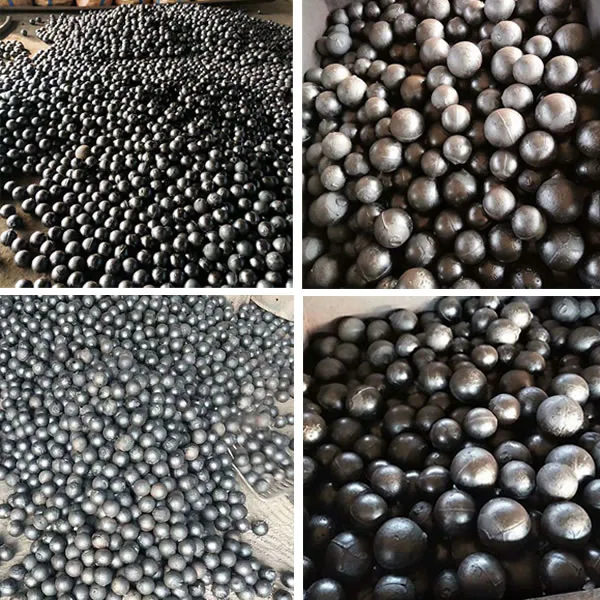

Core product familyGrinding balls supplied by diameter, material route, hardness scope and mill duty.
Candidate material routes
Identification starting point: Mill type, ball diameter, current grade, target hardness scope, consumption history and order quantity.

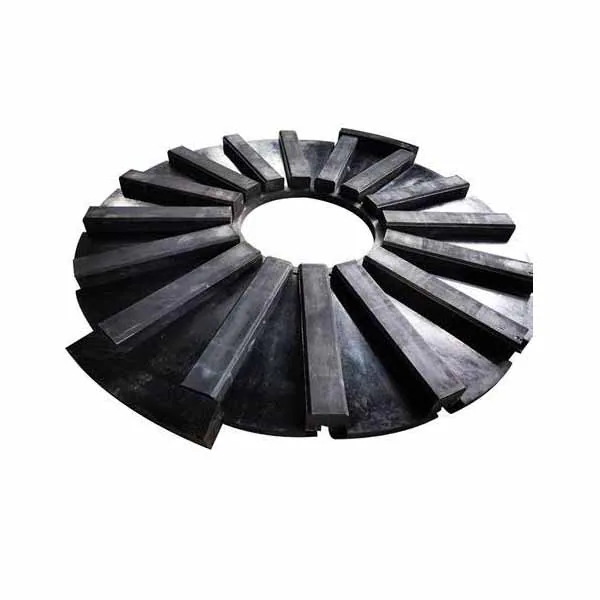

Rubber liner or diaphragm components supplied against the mill arrangement and verified interfaces.
Candidate material routes
Identification starting point: Mill type, position, drawing, aperture or slot geometry, fastening and adjacent components.
These parts support motion, load transfer, sealing or adjustment. Supply scope is confirmed from drawings, mating parts and operating records.
Major end-cover or head component supporting the mill shell, liners and trunnion arrangement.
Mill model, approved drawing, bore and flange geometry, bolt pattern, load and trunnion interfaces.
Girth gear and pinion components transmitting drive torque to the grinding mill.
Mill model, gear drawing, module or DP, tooth count, pressure angle, bore, split and matching requirement.
A public grade name is only a starting point. The quotation and purchase specification define the applicable chemistry, heat treatment, hardness, inspection and traceability scope.
| Part family | Candidate material routes | Selection inputs |
|---|---|---|
| Mill Liner System | Manganese steel / Cr-Mo alloy steel / High-chrome alloy / Rubber or composite route | Feed or process material · Impact and abrasion · Throughput and operating setting · Current wear pattern |
| Grinding Media Balls | Forged alloy steel / High-chrome cast iron / Specified grinding-media grade | Feed or process material · Impact and abrasion · Throughput and operating setting · Current wear pattern |
| Rubber Liners and Diaphragm | Rubber compound / Steel-rubber composite / Specified diaphragm material | Feed or process material · Impact and abrasion · Throughput and operating setting · Current wear pattern |
The company record supports the operating capability below. The inspection plan for a supplied part is defined in the quotation and purchase specification.
Discontinued machines, modified assemblies and unidentified worn parts can be reviewed through a controlled evidence route.
Request a fitment reviewYes. Start with the machine model, an approved drawing, an identified sample or controlled dimensions. We identify missing Grinding Mill Parts interfaces before quotation.
Part geometry, installed position, operating duty, impact, abrasion, temperature and the current failure mode determine the candidate route. The accepted route is recorded in the order specification.
Chemical analysis, hardness, dimensional inspection, visual inspection and technically applicable NDT can be agreed. Methods, sampling and acceptance criteria are order specific.
Yes, when a controlled drawing, identified sample or verified dimensions sufficiently confirm critical interfaces and acceptance criteria before production.
Share the information already available. Unknown fields can be left for engineering review; drawings and photos can be attached in the same form.
