Heat Resisting / Heat-Resistant Castings
Eight core products covering three temperature zones and three mechanical systems. Alloy selection is the #1 quality factor in high-temperature castings — one wrong grade costs a kiln stop.
Use this section for clinker cooler grate plates, cooler side plates, kiln nose ring segments, preheater dip tubes, chain sprockets and HK / HP alloy heat resisting castings.
Clinker Cooler Grate Plates / Cooler Grates
Clinker Cooler Grate Plates / Cooler Grates — heat-resistant castings for clinker coolers, rotary kilns, preheaters and material handling systems. OEM-compatible supply, custom casting and machining, material certificates included.
Cast heat-resistant plates in the cooler section of a cement kiln. Four alloy grades by position: HH (650°C / cool zone discharge grates, dip tubes), HK (850°C / mid-zone, side plates), HP (1,050°C / hot zone, kiln inlet), HP-Nb (1,200°C / bull nose, kiln nose ring). Sigma-phase stabilized for long service at operating temperature. One failed grate plate forces a complete kiln stop — direct production loss.
- Alloy grades
- HH / HK / HP / HP-Nb
- Operating temp.
- 650–1,200 °C
Rotary Kiln Nose Ring Segments / Outlet Segments
Rotary Kiln Nose Ring Segments / Outlet Segments — heat-resistant castings for clinker coolers, rotary kilns, preheaters and material handling systems. OEM-compatible supply, custom casting and machining, material certificates included.
The most thermally stressed component in the cooler system. HP-Nb (25Cr-35Ni+Nb) or HP Micro alloy. Faces 1,400 °C direct clinker discharge + secondary flame impingement. Premature failure causes clinker spillage and burner pipe damage.
- Material
- HP-Nb / HP Micro / HK-40
- Operating temp.
- 1,200–1,400 °C
Clinker Cooler Side Plates / Sealing Plates
Clinker Cooler Side Plates / Sealing Plates — heat-resistant castings for clinker coolers, rotary kilns, preheaters and material handling systems. OEM-compatible supply, custom casting and machining, material certificates included.
Line the cooler side walls and seal the clinker bed from the under-grate compartment. HK (mid-zone) or HH (cool zone) castings. Always supplied as left/right matched pairs. Worn plates allow spillage into the under-grate compartment, increasing cooler fan power consumption.
- Material
- HK 25Cr-20Ni / HH 25Cr-12Ni
- Operating temp.
- 650–850 °C

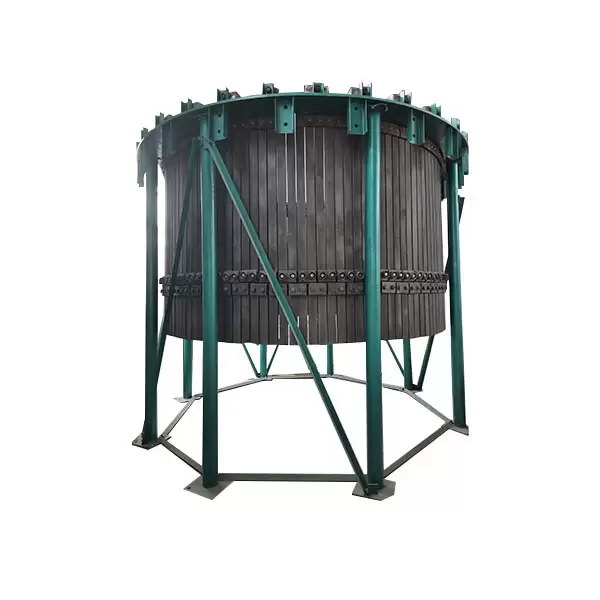

Preheater Dip Tubes / Immersion Tubes
Preheater Dip Tubes / Immersion Tubes — heat-resistant castings for clinker coolers, rotary kilns, preheaters and material handling systems. OEM-compatible supply, custom casting and machining, material certificates included.
Suspended tubes in cyclone preheater towers that direct hot gas flow and collect raw meal. HH or HK alloy for 350–850 °C operation. Segmented design installs through manholes — no tower dismantling required. Each 1% cyclone efficiency loss increases kiln fuel consumption by approximately 1%.
- Material
- HH 25Cr-12Ni / HK 25Cr-20Ni
- Operating temp.
- 350–850 °C
Chain Sprockets / Chain Wheels
Chain Sprockets / Chain Wheels — heat-resistant castings for clinker coolers, rotary kilns, preheaters and material handling systems. OEM-compatible supply, custom casting and machining, material certificates included.
Cast alloy steel sprockets for chain elevators. Induction-hardened tooth flanks (HRC 52–58) for high-cycle contact wear. Monobloc or segmented rim. Fits Tsubaki, Hetai, RUD, Renold, Wulf & Chinese standard chain pitches.
- Material
- 42CrMo / Cast Alloy Steel
- Tooth hardness
- HRC 52–58 (induction hardened)
Bucket Elevator Buckets / Cast Steel Buckets
Bucket Elevator Buckets / Cast Steel Buckets — heat-resistant castings for clinker coolers, rotary kilns, preheaters and material handling systems. OEM-compatible supply, custom casting and machining, material certificates included.
Cast elevator buckets for material handling in cement plants. High-Cr cast iron (ambient, abrasive), Mn steel (low-temperature), or Ni-Hard 4 (up to 400 °C clinker). Vented design prevents material build-up. Fits Tsubaki, Hetai, RUD, Renold standard chain pitches. AA-211, AA-311, AA-415, AA-911 standard designs.
- Material
- High-Cr iron / Mn steel / Ni-Hard 4
- Hardness
- HRC 55–60
Drag Chain Flights / Scraper Flights
Drag Chain Flights / Scraper Flights — heat-resistant castings for clinker coolers, rotary kilns, preheaters and material handling systems. OEM-compatible supply, custom casting and machining, material certificates included.
One-piece cast flights for drag chain conveyors in clinker coolers and preheater towers. Ni-Hard 4 or Cr26. Symmetrical design allows reversal (2× effective service life). No weld joints means no fatigue fracture. Fits Wulf Bühler and Chinese drag chain systems.
- Material
- Ni-Hard 4 / Cr26 / Mn18Cr2
- Hardness
- HRC 55–62
Chute Liners & Hopper Liners / Wear Plates
Chute Liners & Hopper Liners / Wear Plates — heat-resistant castings for clinker coolers, rotary kilns, preheaters and material handling systems. OEM-compatible supply, custom casting and machining, material certificates included.
The most versatile wear protection product line. Hardox 450 (moderate impact + abrasion), HB400 (low impact), Cr26 overlay (high abrasion), or ceramic alumina tiles (severe sliding wear). Bolt-on or weld-on. Multiple grades available because one material does not fit all chute applications.
- Material options
- Hardox 450 / HB400 / Cr26 / Ceramic
- Hardness
- HB 400–450 / HRC 58–62 / 70+ HRC
Supported Crusher Brands & Models
Click a brand to see all supported models. Every part is reverse-engineered to OEM specifications.
FLSmidth Full Range
DOPOL Cyclone Preheater
SF Cross-Bar Cooler
Cross-Bar Cooler (legacy)
Reciprocating Cooler
PYROTOP
KHD Humboldt Wedag Full Range
PYROCLON Cyclone Preheater
RECOOL Cooler
PYRORAPID Cooler
Sinoma / Chinese OEM Full Range
Sinoma Cooler
Sinoma Preheater
Chinese Standard
Polysius / ThyssenKrupp Full Range
PREPOL Calciner
REPOL Cooler
Elevator & Chain Systems 5+ Major Brands
Tsubaki
RUD
Renold
Wulf Bühler
Hetai / Chinese
Which Alloy for Your Temperature Zone?
High-temperature castings require correct Ni content and microstructure. Wrong grade = premature failure and kiln stop.
A. Heat-Resistant Alloy Grades by Temperature Zone
| Grade | Cr-Ni % | Max Temp | Strengthening | Key Application | Typical Life |
|---|---|---|---|---|---|
| HH (25Cr-12Ni) | 25 / 12 | 650 °C | As-cast carbide | Cooler discharge grates, dip tubes | 12,000-20,000 hrs |
| HK (25Cr-20Ni) | 25 / 20 | 850 °C | As-cast carbide network | Cooler mid-zone grates, side plates | 8,000-15,000 hrs |
| HP (25Cr-35Ni) | 25 / 35 | 1,050 °C | Eutectic carbide, creep-resistant | Cooler hot zone, kiln inlet | 4,000-10,000 hrs |
| HP-Nb (25Cr-35Ni+Nb) | 25 / 35 + Nb | 1,200 °C | Niobium carbide, sigma-phase control | Cooler bull nose, kiln nose ring | 2,000-6,000 hrs |
B. Chain System & General Wear Castings
| Part | Operating Condition | Recommended Grade | Hardness / Max Temp | Typical Life | Failure Consequence |
|---|---|---|---|---|---|
| Sprocket (raw meal elevator) | Ambient, high-cycle contact | 42CrMo + tooth IH | HRC 52-58 | 15,000-25,000 hrs | Chain skip, production stop |
| Sprocket (clinker elevator) | 200-350 °C, abrasive dust | Cast Cr-Mo + tooth IH | HRC 50-55 | 8,000-15,000 hrs | Accelerated chain wear |
| Elevator Bucket (raw meal) | Ambient, abrasive | High-Cr Cast Iron | HRC 55-60 | 10,000-18,000 hrs | Material spillage |
| Elevator Bucket (clinker) | 250-400 °C, abrasive | Ni-Hard 4 | HRC 55-60 / 450 °C max | 6,000-12,000 hrs | Hot clinker spill = fire risk |
| Drag Chain Flight (clinker) | Ambient, high abrasion | Ni-Hard 4 / Cr26 | HRC 55-62 | 4,000-8,000 hrs | Material carryover |
| Chute Liner (abrasive flow) | Ambient to 400 °C | Cr26 Overlay / Ceramic | HRC 58-62 / 70+ | 12,000-20,000 hrs | Housing damage |
Three Rules for Heat-Resistant Casting Economics
① Nickel content = creep resistance = cost. Ni goes from 12% (HH) to 35%+Nb (HP-Nb). Each 10% Ni increment adds significant cost to the casting. Selecting HP-Nb where HK would work wastes money. Selecting HK where HP-Nb is needed costs a kiln stop.
② Sigma phase embrittlement is the silent killer. Prolonged exposure at 600-900 °C causes chrome-rich sigma phase precipitation in the grain boundaries of HK/HP alloys. HP-Nb with niobium stabilization resists this. Catastrophic brittle fracture during shutdown restart.
③ Chain itself is not a casting product \u2014 but sprockets, buckets, and flights are. Do not supply chain links, pins, or bushings \u2014 these are forged/machined products outside your foundry capability. Focus on the cast components that interface with the chain system.
