Jaw Crusher Parts
This page is the technical and commercial entry point for “Jaw Crusher Parts”. It covers four distinct buyer tasks without treating a model name as a fitment guarantee.
Start with the part family that contacts the material or defines the working chamber. Final fitment and material selection follow the actual machine and duty.
Core product familyStationary wear surface forming one side of the jaw-crusher chamber.
Candidate material routes
Identification starting point: Crusher model, OEM reference, tooth profile, mounting pattern and fixed-jaw position.
Core product familyMoving wear surface mounted to the pitman or swing-jaw holder.
Candidate material routes
Identification starting point: Crusher model, OEM reference, tooth profile, mounting pattern and swing-jaw position.

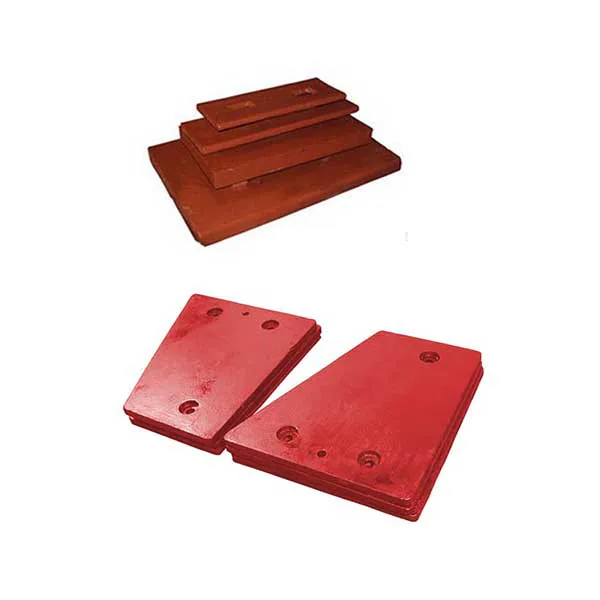

Replaceable side plate protecting the left or right wall of the crushing chamber.
Candidate material routes
Identification starting point: Crusher model, left/right position, row, thickness, hole pattern and outer profile.
Load-transfer plate between the pitman and toggle seat, supplied against the machine reference and seat geometry.
Candidate material routes
Identification starting point: Crusher model, length, width, end-seat profile, thickness and material.
Seat component locating the toggle plate and transferring load into the adjacent structure.
Candidate material routes
Identification starting point: Crusher model, position, seat radius, overall profile, mounting dimensions and toggle pairing.
Upper or lower wedge used to clamp, locate or adjust a jaw plate.
Candidate material routes
Identification starting point: Crusher model, upper/lower position, side, profile, holes and mating jaw arrangement.
These parts support motion, load transfer, sealing or adjustment. Supply scope is confirmed from drawings, mating parts and operating records.
Machined shaft generating the eccentric motion of the pitman assembly.
Crusher model, approved drawing, bearing journals, eccentric throw, keyways and mating parts.
Bearings and housings matched by designation, dimensions, clearance, fits and lubrication arrangement.
Crusher model, bearing designation, housing drawing, dimensions, clearance and lubrication.
Tension rod and spring components maintaining the specified jaw mechanism preload and return action.
Crusher model, assembly drawing, rod length and thread, spring dimensions, preload and mounting interfaces.
Use these references to begin a search. They are not a fitment guarantee. Final compatibility is released against the OEM part number, serial range, approved drawing, identified sample or verified critical dimensions.
Manufacturer names and model designations are used only to identify compatible replacement-part references. ZL is not affiliated with the listed OEMs.
A public grade name is only a starting point. The quotation and purchase specification define the applicable chemistry, heat treatment, hardness, inspection and traceability scope.
| Part family | Candidate material routes | Selection inputs |
|---|---|---|
| Fixed Jaw Plate | Mn13Cr2 / Mn18Cr2 / Mn22Cr2 | Feed or process material · Impact and abrasion · Throughput and operating setting · Current wear pattern |
| Swing Jaw Plate | Mn13Cr2 / Mn18Cr2 / Mn22Cr2 | Feed or process material · Impact and abrasion · Throughput and operating setting · Current wear pattern |
| Cheek Plate | Mn18Cr2 / Abrasion-resistant plate / Specified alloy | Feed or process material · Impact and abrasion · Throughput and operating setting · Current wear pattern |
| Toggle Plate | Ductile iron / Cast steel / Specified grade | Feed or process material · Impact and abrasion · Throughput and operating setting · Current wear pattern |
| Toggle Seat | Cast steel / Alloy steel / Specified grade | Feed or process material · Impact and abrasion · Throughput and operating setting · Current wear pattern |
| Upper and Lower Wedges | Alloy steel / Manganese steel / Specified grade | Feed or process material · Impact and abrasion · Throughput and operating setting · Current wear pattern |
The company record supports the operating capability below. The inspection plan for a supplied part is defined in the quotation and purchase specification.
Discontinued machines, modified assemblies and unidentified worn parts can be reviewed through a controlled evidence route.
Request a fitment reviewYes. Start with the machine model, an approved drawing, an identified sample or controlled dimensions. We identify missing Jaw Crusher Parts interfaces before quotation.
Part geometry, installed position, operating duty, impact, abrasion, temperature and the current failure mode determine the candidate route. The accepted route is recorded in the order specification.
Chemical analysis, hardness, dimensional inspection, visual inspection and technically applicable NDT can be agreed. Methods, sampling and acceptance criteria are order specific.
Yes, when a controlled drawing, identified sample or verified dimensions sufficiently confirm critical interfaces and acceptance criteria before production.
Share the information already available. Unknown fields can be left for engineering review; drawings and photos can be attached in the same form.
