Wear and spare parts
VSI Crusher Parts for international equipment, matched by model, drawing or verified dimensions with order-specific material and inspection routes.
Category content reviewed by ZL Crusher Parts Engineering Team · · Company evidence boundaries

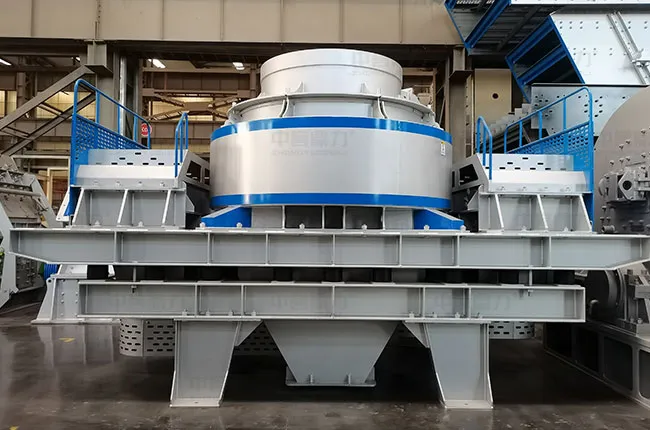

VSI Crusher Parts
This page is the technical and commercial entry point for “VSI Crusher Parts”. It covers four distinct buyer tasks without treating a model name as a fitment guarantee.
Start with the part family that contacts the material or defines the working chamber. Final fitment and material selection follow the actual machine and duty.
Core product familyReplaceable tip protecting the rotor outlet and accelerating material.
Candidate material routes
Identification starting point: VSI model, rotor type, tip position, holder interface, dimensions and rotation direction.

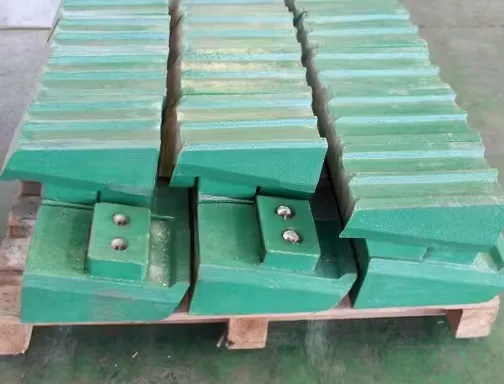

Stationary impact block or ring used in an anvil-type VSI configuration.
Candidate material routes
Identification starting point: VSI model, anvil-ring design, position, block profile, holder and gap arrangement.
Central wear plate distributing feed into the VSI rotor.
Candidate material routes
Identification starting point: VSI model, rotor type, plate diameter, thickness, centre fixing and feed arrangement.
Replaceable feed-entry component guiding material into the centre of the VSI rotor.
Candidate material routes
Identification starting point: VSI model, component reference, inside/outside diameters, length, flange and feed arrangement.
Replaceable liner or wear plate protecting the VSI rotor cavity or surrounding wear zone.
Candidate material routes
Identification starting point: VSI model, cavity position, orientation, profile, thickness, hole pattern and adjacent parts.
These parts support motion, load transfer, sealing or adjustment. Supply scope is confirmed from drawings, mating parts and operating records.
Rotor body and internal wear-part interfaces supplied to an agreed balance scope.
VSI model, rotor type, approved drawing, shaft interface, wear-part layout, mass and balance grade.
High-speed bearings matched by designation, clearance or preload, speed and lubrication.
VSI model, bearing code, cartridge arrangement, dimensions, clearance or preload and lubrication.
Use these references to begin a search. They are not a fitment guarantee. Final compatibility is released against the OEM part number, serial range, approved drawing, identified sample or verified critical dimensions.
Manufacturer names and model designations are used only to identify compatible replacement-part references. ZL is not affiliated with the listed OEMs.
A public grade name is only a starting point. The quotation and purchase specification define the applicable chemistry, heat treatment, hardness, inspection and traceability scope.
| Part family | Candidate material routes | Selection inputs |
|---|---|---|
| Rotor Tip | Tungsten carbide / Ceramic composite / High-chrome alloy / Specified composite | Feed or process material · Impact and abrasion · Throughput and operating setting · Current wear pattern |
| Anvil | High-chrome iron / Tungsten-carbide composite / Specified alloy | Feed or process material · Impact and abrasion · Throughput and operating setting · Current wear pattern |
| Distributor Plate | High-chrome iron / Tungsten carbide / Ceramic composite / Specified alloy | Feed or process material · Impact and abrasion · Throughput and operating setting · Current wear pattern |
| Feed Tube | High-chrome iron / Ceramic-lined steel / Tungsten-carbide composite / Specified alloy | Feed or process material · Impact and abrasion · Throughput and operating setting · Current wear pattern |
| Cavity Wear Liner | High-chrome alloy / Abrasion-resistant plate / Tungsten-carbide composite / Specified material | Feed or process material · Impact and abrasion · Throughput and operating setting · Current wear pattern |
The company record supports the operating capability below. The inspection plan for a supplied part is defined in the quotation and purchase specification.
Discontinued machines, modified assemblies and unidentified worn parts can be reviewed through a controlled evidence route.
Request a fitment reviewYes. Start with the machine model, an approved drawing, an identified sample or controlled dimensions. We identify missing VSI Crusher Parts interfaces before quotation.
Part geometry, installed position, operating duty, impact, abrasion, temperature and the current failure mode determine the candidate route. The accepted route is recorded in the order specification.
Chemical analysis, hardness, dimensional inspection, visual inspection and technically applicable NDT can be agreed. Methods, sampling and acceptance criteria are order specific.
Yes, when a controlled drawing, identified sample or verified dimensions sufficiently confirm critical interfaces and acceptance criteria before production.
Share the information already available. Unknown fields can be left for engineering review; drawings and photos can be attached in the same form.
